Meyer Plow Jeep Wrangler Installation Pictures
(Meyer Drive Pro 6'8", Meyer EZ Classic, Meyer TM-6.5)
Jeeps and Meyer Snow Plows have been partners since the 1940's Willys CJ's came out. It has been a long, strong relationship to this day. Over the years, there have been some changes as far as plows and Jeeps go. In my opinion, the Jeep has evolved A LOT more than the plow.
The Meyer ST (Standard) plow was fist used on Jeeps in the 1940's. The mounts were considered "Custom", hence the name "Custom Classic". Many varieties were offered over the years for Jeeps. The Custom Classic design mounted the Lift Frame on top of the Jeep frame rails, and the undercarriage was permanently attached to the Jeep. In fact it was not uncommon for the plow frame to be welded to the Jeep frame.
The Jeep pictured above is a scan of a Meyer post card. The
Jeep has a rear Meyer plow
as well as a front Meyer ST plow. The steel cab on the Jeep was also made by Meyer.
The above ads came from a Kaiser Jeep Accessory Brochure.
Here you got a Service Station pusher bumper
with your Meyer ST-72 plow.
(As a side note, Meyer used to make the steel half cabs and doors for Jeeps too!)
Talking about how much the Jeep has changed...
There is a BIG difference just from the 2006 to the 2012 model under the hood!
So back to the plows used over the years. The ST was used on Jeep CJ's and Wranglers until 1996. Prior to 1987, the ST- 6.5' (aka ST78) plow was standard. From 1987 - 1996, for some reason, the ST-7.0 became standard. In 1997, Meyer designed the EZ Classic mount for the Jeep. It was in essence the same downsized EZ Classic that was used on the S-10, Jeep Cherokee, and Ranger, but the Lift Frame was a little smaller, and ONLY fit the Jeep Wrangler. It was also the first year that the Wrangler used the TM (Two Meter) Series plows. It was the first year (being an EZ Classic) that the tubular Lift Frame (with the pump and lights) could be removed in the off season. The TM was available in 5', 6' and 6.5' sizes. The TM Series was officially discontinued in November of 2009. All that means is that a complete new setup cannot be ordered. Parts will be available for at least 10 years. Only the Moldboard has been completely discontinued. Meyer offers the Facelift, which uses the Drive Pro Plow, with ears that will pin onto a EZ Classic TM Mount.
In 2007, the Jeep Wrangler joined the other smaller trucks and SUV's and the Drive Pro 6'8" (DP6.8) became standard. When the Drive Pro is removed from the vehicle, the Lift Frame, Pump, and Lights are removed as one piece with the blade.
2018 Jeep Wrangler JL Meyer Drive Pro 6' 8" Standard Operating System (SOS) Plow Install
|Part 2||Part 3|
2004 Jeep Wrangler Meyer Drive Pro 6' 8" Standard Operating System (SOS) Install
|Part 2||Part 3|
|Part 4||Part 5|
|Part 6||Part 7|
|Part 8||Part 9|
2008 Jeep Wrangler - Meyer Drive Po 6' 8" Plow Install
|Hope the aftermarket bumper is not a problem.||It sticks out pretty far.||Just made it!|
|Pretty busy up front.||All done!||Had to fabricate a bracket for the 1 Piece Plow Socket|
Some 2012 - 2013 Installs
2011 Jeep Wrangler Sport Meyer Drive Pro 6'8" Plow
2013 Jeep Wrangler Sport Meyer Drive Pro 6'8" Plow
2007 Jeep Wrangler Sahara
|Before||Daystar Switch Panel||Daystar Switch Panel Installed|
|Power supply to Switch Panel. Not much room under the hood.||Switch Panel wiring. Not much room under the
hood to hide this, yet leave it
accessible. Added fuse box.
2006 Jeep Wrangler Rubicon
|2006 Jeep Wrangler Rubicon||Done.||Side View.|
|2012 Jeep Wrangler Sport||2012 Jeep Wrangler Sport|

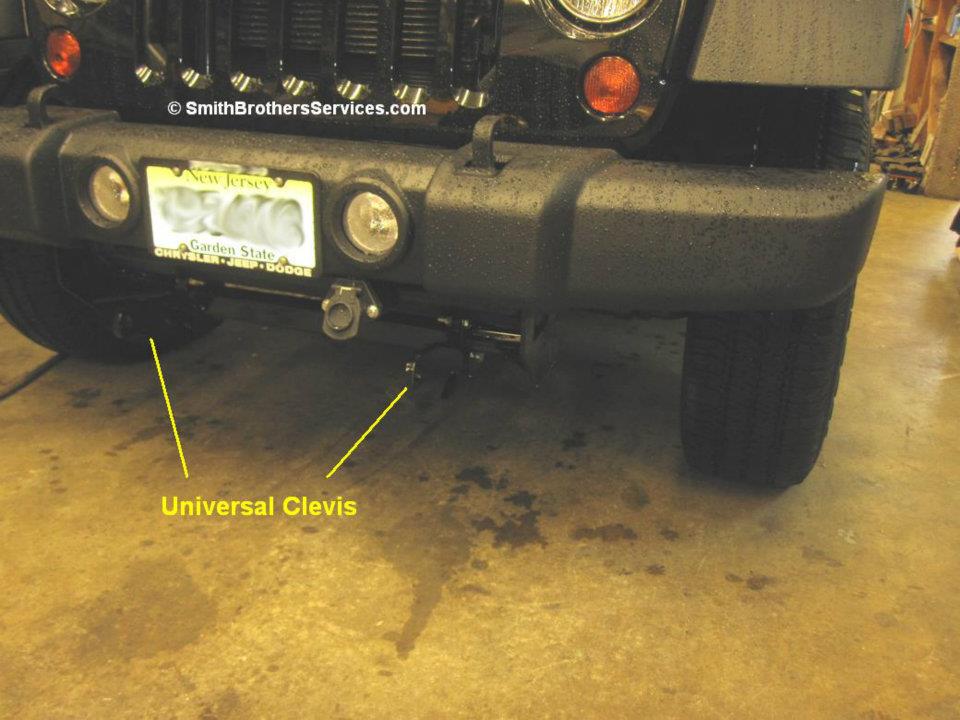

|2012 Jeep Wrangler Unlimited||Wiring installed. 1 Piece Plug mounted under bumper.||Another view of 1 Piece Plug and Universal Clevis Frame.|
|Top view of front.||Custom Crankstand conversion we do here in the shop to all Drive Pro 6'8" plows we install from this day on.. NO MORE jack leg.||Another view of the Custom Crankstand (which is now Standard from Meyer as of 2012 - 2013 season).|
|All done!||Side view.|
|Side view, plow raised.||Side view, plow down.|
2012 Jeep Wrangler Unlimited - The Crankstand is now STANDARD
all current production Meyer Drive Pro 6'8" Snow Plows. (2012 - 2013 Season)
|2012 Jeep Wrangler Meyer Drive Pro Mount||2012 Jeep Wrangler ready to bleed air out of system.|
1995 Wrangler TM Custom Classic Mount - How to run a Meyer TM plow on a 1987 - 1996 Jeep Wrangler YJ
|2004 Wrangler - The customer removed a Western Suburbanite the day before we installed the Drive Pro 6'8". It got dark so no "after" pics.||2012 Jeep Wrangler with Meyer Drive Pro 6'8" installed|
Lifted pre-1997 Jeep Wrangler YJ
We talked about it. The customer went home and cut the pieces.
Tacked them in place, and had my Brother weld it all up for him.
Worked flawlessly 17 storms 2010 - 2011.
Pics from Fall 2010
Here he just stopped by to show us. He did not put the PA Rams on yet.
2010 Jeep Wrangler Sport Meyer Drive Pro 6'8"
2010 Jeep Wrangler Rubicon - Meyer Drive Pro 6'8" (DP-68)
2009 Jeep Wrangler Meyer Drive Pro Mount.
2007 Jeep Wrangler JK with 3.5" lift and 35" tires 1-29-18 2013 Jeep Wrangler Sport JK - Meyer Drive Pro 6' 8" Install and EZ Plus Conversion.
1-29-18 2013 Jeep Wrangler Sport JK - Meyer Drive Pro 6' 8" Install and EZ Plus Conversion.
