Toyota Tacoma Meyer Drive Pro 6'8" Page

I wish I had a chance to plow with one of these Toyota Tacoma trucks myself.
Moving them around in the lot it is easy to see they will make great little plow trucks. _________________________________________________________________________________________

New Upgrade - We put a Crankstand on a Drive Pro 6'8"

This truck had a leveling kit and larger tires that made the plow mount 3" too high. So we cut the ears off the A Frame...	... and made new ones from 3/4" plate that were 3" taller to make up the difference.	New ears welded on and first coat of Meyer black on them.

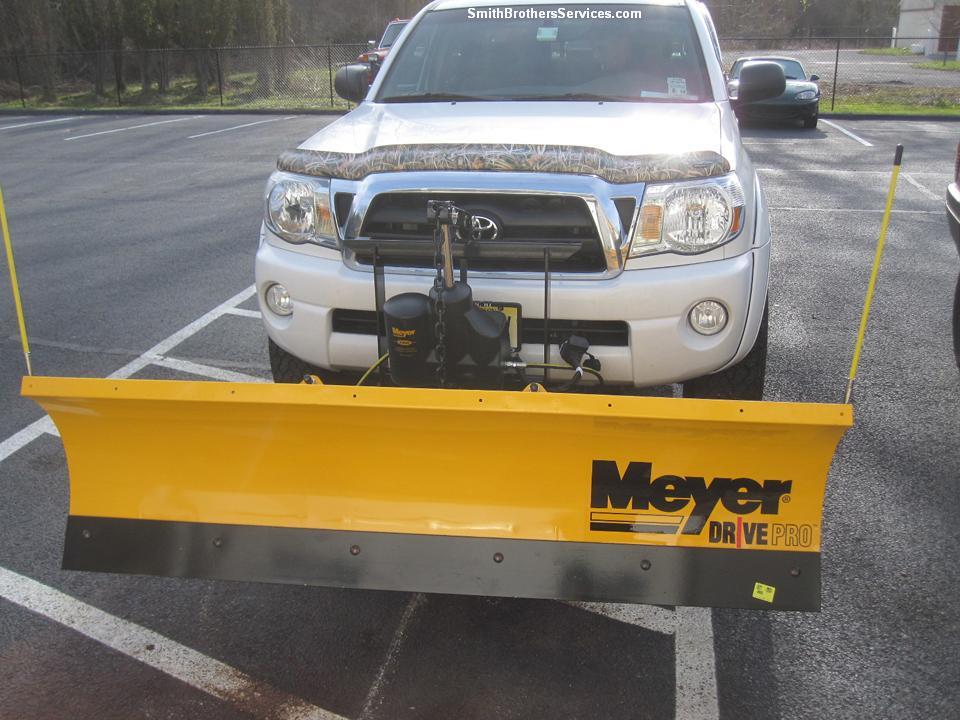

2008 Tacoma with leveling kit and larger tires.

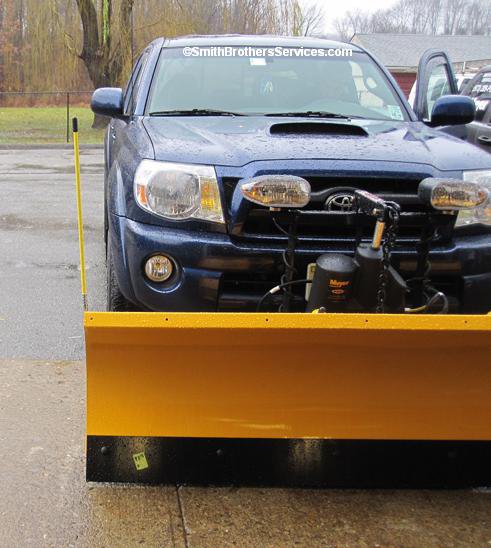

Another Tacoma with a Meyer Drive Pro 6'8"

______________________________________________________________________________________

This is a 2010 Toyota Tacoma TRD Off Road, with a Meyer Drive Pro 6'8".
Factory back up camera built into tailgate, monitor built into center rearview mirror.

____________________________________________________________________________________________________

Here is a 2008 4 door Tacoma TRD Sport. What a nice truck. Will be adding pics of another Tacoma next week.

__________________________________________________________________

The 2006 below was more agile than the other one, as the 2006
is a standard cab. The Maroon one below is a 4 door model.

We mounted a Meyer Drive Pro on a 2006 Toyota Tacoma. - Click on any image for a larger view.

This Drive Pro 6'8" was prior to the molded plastic cover that is now standard on all Meyer Drive Pro
E-58H Hydraulic units. The customer is very happy with the Drive Pro on his Tacoma.

____________________________________________________________________

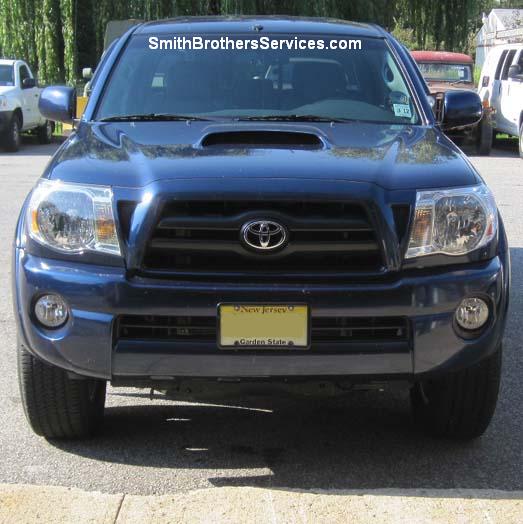

Another Tacoma

We like to do the wiring first, then the mount. The bracket for the 1 piece plug is not something we like. At least it is tucked
in some compared to other vehicle installs we have done. Front bumper designs are making it harder and harder to
accommodate a plow plug on all vehicles. It is a painstaking job in itself to find a place that does not look horrible.
This customer is very happy with his Meyer Drive Pro 6'8" too.

_______________________________________________________________________________

Meyer Drive Pro 6'8" Parts List

Component:	Meyer Part #:	Weight
Moldboard DP 6.8 Steel Drive Pro	09274	134
Mounting Carton Toyota Tacoma 2005 - 2011	18502	27.4
Clevis & Lift Frame	16601	82.8
Sector/A-Frame Carton:	16600	103.4
E-58H Hydraulic Carton:	15988	88.17
Nite Saber 1 Plow Light Carton:	07234	10
Headlight Adapter:	07180	0.5

The Drive Pro 6'8" Universal Clevis weighs 18.6 pounds
The Mounting Carton weighs 27.4 pounds
Figure the wiring, Modules, and Solenoid weigh 10 pounds
So with the plow off, you have added about 56 pounds to your front end.
By comparison a 2002 Dodge Ram 2500 EZ Classic or EZ Plus Mount adds about 130 pounds.

____________________________________

This is the 2006 Toyota Tacoma that is at the top of this page. The owner came in to complain that the shoes do not hold the blade off the ground. He has a gravel driveway. Meyer sent out a set of replacement shoes at no charge that do keep the cutting edge about 2" off the ground. I had originally taken these pics to show Meyer the problem. In the top picture "No Ballast", the plow was on float, on the ground. I took the picture. I then made sure the plow was in "Float", and pushed the lift arm all the way down. It made no difference, so I did not take another picture. I then had my Brother stand on the back bumper, and he weighs over 350 pounds. You can see how much of a difference (using the red line I put on each pic as a reference) it made in getting the plow to sit at the proper angle. Ideally, the Power Angle Rams should be parallel to the ground. I always say it is a good idea to start with 300 pounds of ballast secured in the bed of the truck up against the tailgate, and go up from there to as much as 500 pounds (on fullsize trucks). When a plow is on, the truck will have much better traction with ballast.

For comparison, here is a Toyota Tundra, with an STL-7.5 on it. The A Frame is literally 2" off the ground just below the blue handle pin.
Due to the low ride height of the Tundra, I try to discourage owners from putting plows on them. We did not install this one, it came in for maintenance.
