Meyer Plow Installation Pictures
(Lot Pro, Drive Pro, Super V2, ST Models, C Models, EZ Plus, EZ Classic, EZ Custom, etc.)

Here are a few installs we have done in the past on various trucks and SUVs.

Jeep Wrangler Installs Page

Toyota Tacoma Installs Page

Some 2012 - 2013 Installs

2012 Dodge Ram 2500HD Meyer Lot Pro 8 with E-58H Hydraulics


Before	A LOT of work	After	After

_______________________________________

2011 Jeep Wrangler Sport Meyer Drive Pro 6'8" Plow


Before	After Meyer Drive Pro 6'8" install

______________________________________

2013 Jeep Wrangler Sport Meyer Drive Pro 6'8" Plow


Before	After Meyer Drive Pro 6'8" install

___________________________________________

2004 GMC 2500HD Duramax Meyer Lot Pro 8 with E-72 Premium Hydraulics


Before	After Meyer Lot Pro 8 install

__________________________________________________________________

2012 Chevrolet 2500HD Meyer Drive Pro 7'6" plow


Did you know that nice chrome bumper is now PLASTIC?	Just need to adjust the lights, top off the fluid, and put the Meyer E-72 pump cover on.	3/4 view	Lights adjusted, E-72 pump topped off, pump cover on

_____________________________________

2003 Chevy 1500 Meyer Drive Pro 7'6" Plow Install

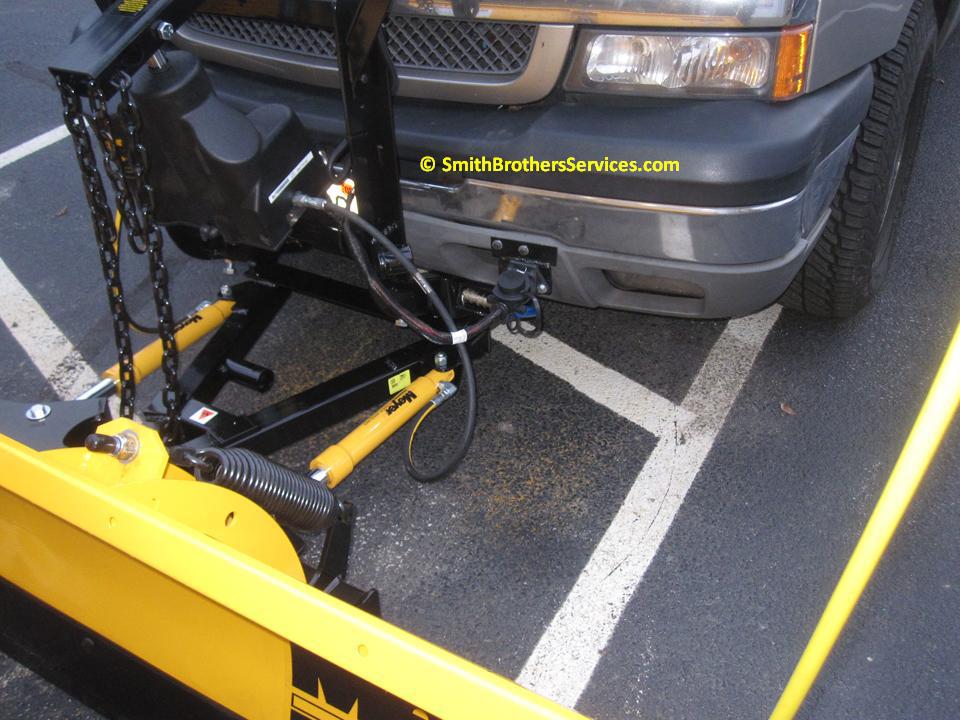

Before. Deer damage on right side.	VERY common. The DRL sockets melt. This is why we do not use the Meyer DRL module kit on these trucks. Most of the time the DRL do not work as it is.	All done.	Made a bracket for the 1 piece plug.

All done. Looks good. Truck side is 1.5" low. Ballast should help with that.	3/4 View	A view of how the 1 piece plug works.

________________________________________________________

2011 Toyota Tacoma Meyer Drive Pro 6'8"


Before	I love Tacoma installs. They turn out so neat and clean.	I love Tacoma installs. They turn out so neat and clean.	After	After

___________________________________________________

2007 Jeep Wrangler Sahara


Before	Daystar Switch Panel	Daystar Switch Panel Installed

Power supply to Switch Panel. Not much room under the hood.	Switch Panel wiring. Not much room under the hood to hide this, yet leave it accessible. Added fuse box.	After

___________________________________________________________________

2012 Dodge Ram 1500

This is the FIRST time I said yes to a 1500, and only because of the plastic bumper
cover, and it is a good customer that wanted this done. NEVER AGAIN.


Plastic bumper cover, I am jumping in with both feet on this one.	This is where the Clevis needs to be. This is the first 1500 with a plastic bumper, so I will be cutting as little as possible.	Hmmm, a little more work than I thought. No turning back now...	Here you can see I did NOT have to trim any of the painted crosspiece on the bumper of the plow to fit	Ready to go!

_________________________________________________________________________________

2003 Ford Explorer Meyer Drive Pro 6'8"


Looks innocent. This turned out to be the most time consuming install I EVER did.	The most "plow unfriendly" install I have ever done.	Not sure why they designed the Clevis to stick out so far? Never saw any other mount stick out this far before.	With the V8 this should have NO problem pushing snow!

_________________________________________________________________________

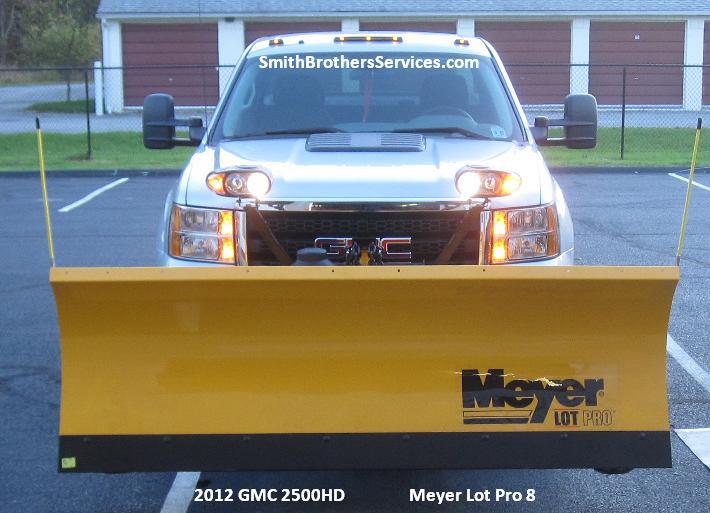

2012 GMC Sierra 2500HD Meyer Lot Pro 8 E-72


Before	After	NO cutting the bumper.	Clevis close up.

____________________________________________________________________________________

2006 Dodge Ram 1500 TRX4 with Meyer Drive Pro 7'6" Plow
In case you are wondering what the TRX4 is.... from Pickuptrucks.com: "Following the success of the Dodge Power Wagon, the Ram 1500 will get it own off-road trim package. Called the TRX4, this model includes 17-inch alloy wheels, aggressive off-road tires, painted monotube shocks, tow hooks, skid plates and a limited-slip differential. Other features include fog lamps, body-color grille and TRX4 decals." No tow hooks on this one though...


I had to mock up the mount under the truck just to make sure it was going to work. Usually on the 03 & up 1500's they are too low, but this one is TALL. Luckily, Meyer just added an extra set of lower holes for the newer Dodges with the ridiculously tall bumpers (read, low to the ground bumpers) so I was able to use those lower holes and make this work. This is also a TRX4, and it has 285's on it instead of the stock 265's. It really is a nice looking truck, and with the short bed regular cab it is going to be an awesome plow truck.	Front bumper height.	Pulled out the driver's side headlight. Duct tape on the parking light and turn signal wires? Can see the bumper was clearcoated, but they masked off the headlight...

All 3 wires? Why would they need to strip insulation off the ground wire too?	Geez...	Had to cut 6" off the turn signal wire. It was black inside the insulation.

Passenger side, same thing, duct tape.	You guessed it, all 3 wires stripped....	Mount and wiring done.

Meyer Drive Pro 7'6" mounted, all done.	Side view.	Ready for pickup.

_____________________________________________________________________________

2012 GMC 2500HD Meyer SuperV2 8.5 Snow Plow and Payload Dump Insert

		Ready for anything!

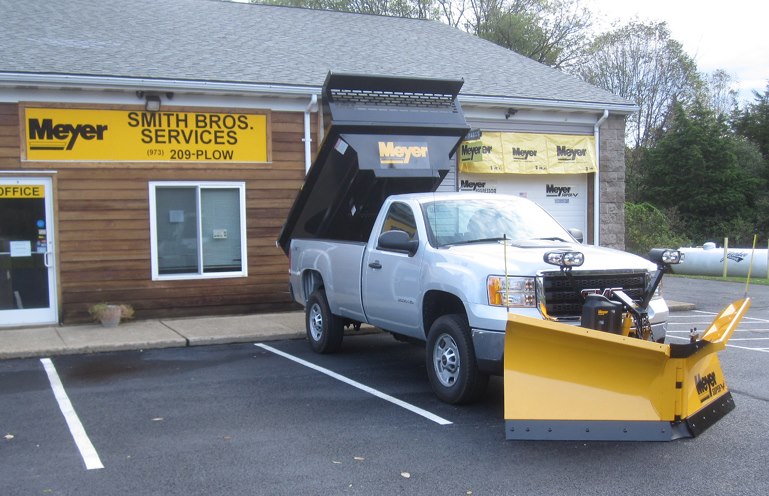

Dump insert is done, just a few finishing touches left. Yes it goes higher. It is sitting on the safety prop.

		TWIN cylinders on the Payload Dump Insert.

__________________________________________________


2012 Toyota Tacoma - Before	2012 Toyota Tacoma - After	2012 Toyota Tacoma - After

__________________________________________________________________________________

2006 Jeep Wrangler Unlimited Rubicon - More pics.


2006 Jeep Wrangler Rubicon	Done.	Side View.

______________________________________________________


Another silver 2012 Wrangler	2012 Jeep, all done.

_____________________________________________________________________________________________

This was not an install. This is an owner picking up his new Lot Pro 8.5 Facelift we assembled with Xtendors on the cutting edge to prolong edge life.
